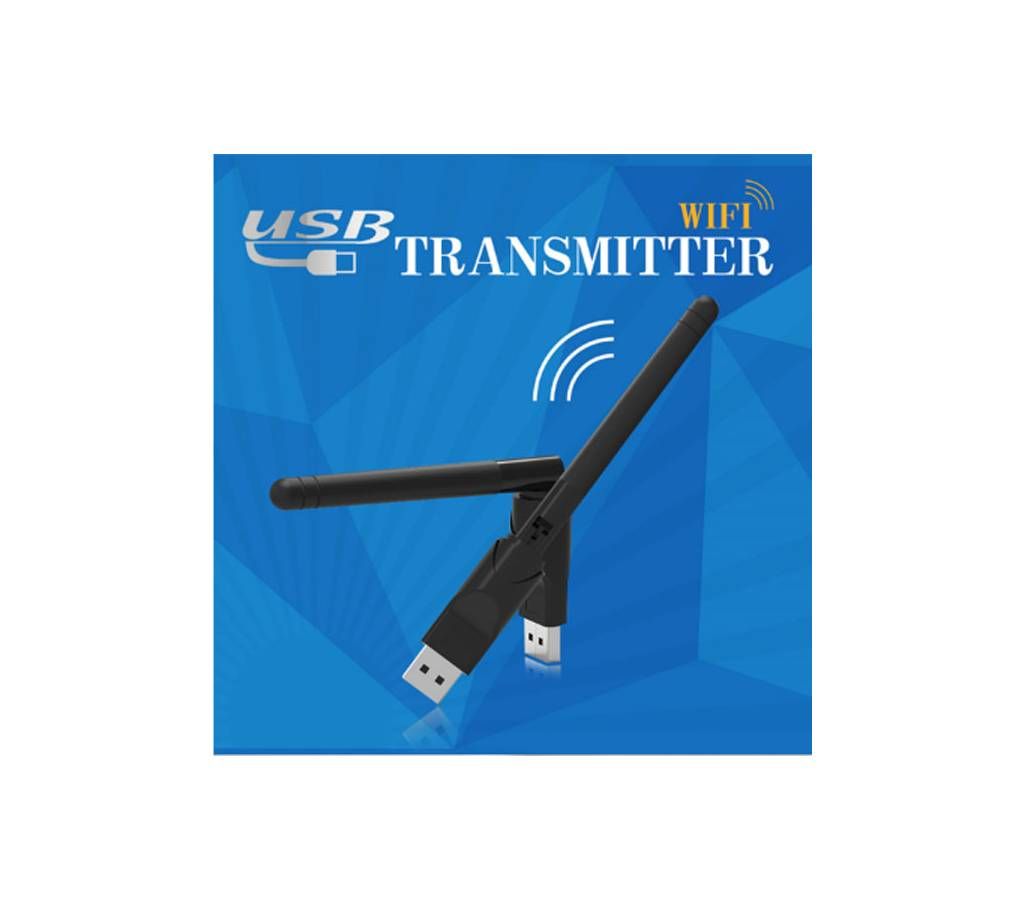

Wi-Fi 300Mbps Wireless N USB Adapter
2.4G Wifi 300Mbps Wireless N USB Adapter
Features of Ralink RT5370 Wi-Fi Dongle?
Realtek RT5370 Chipset
Mini portable USB 2.0 design.
External 2Dbi or 5Dbi antenna optional to meet your various demand.
Wireless N speed up to 150Mbps, ideal for internet surfing and online gaming.
Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards.
Provides two work modes: Infrastructure and Ad-Hoc.
MIMO technology makes wireless transmission rates up to 150Mbps wifi antenna.
CCA technology enhances your signal stablility by automatically avoiding channel conflicts.
Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.
Supports WIN2K, XP, VISTA, WIN7, MAC, LINUX operating system.
Perfectly match with Raspberry PI, Banan PI, Skybox, STB,IPTV, Navigation system, 3D printer
Supports wireless roaming technology for high-efficient wireless connections.
Seamlessly compatible with 802.11b/g/n devices.
specification of Ralink RT5370 Wi-Fi Dongle?
Wireless Standards IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface High speed USB2.0/1.1 interface
Wireless Signal Rates with Automatic Fallback 802.11n: up to 300Mbps(Dynamic)
802.11g: up to 54Mbps(Dynamic)
802.11b: up to 11Mbps(Dynamic)
Frequency Range 2.4GHz-2.4835GHz
Wireless Transmit Power 18dBm(EIRP)
Modulation Type DBPSK,DQPSK,CCK,OFDM
Receiver Sensitivity 270M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@10% PER
Work Mode Ad-Hoc Infrastructure, soft AP
Wireless Security WPS, 64/128big WEP, WPA/WPAS, WPA-PSK/WPA2-PSK(TKIP/AES)
Support Operation System Windows XP/VISTA/Win7/Linux/Macintosh
Interface USB2.0 Hi-Speed connector
Antenna Type Internal Omni-directional PIFA Antenna
Environment
Operating Temperature: 0oC to 40oC
Storage Temperature: -40oC to 70oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95%
