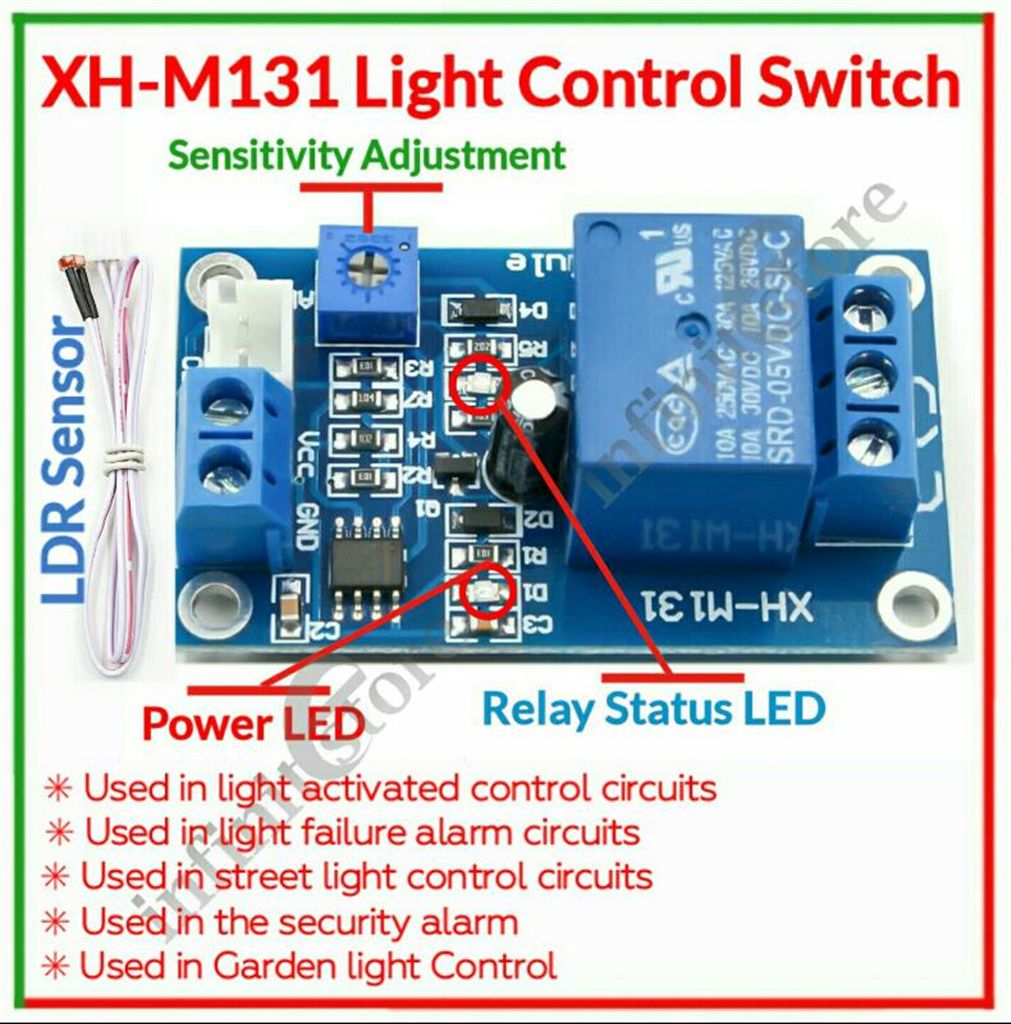

XH-M131 Light Control Switch
XH-M131 লাইট কন্ট্রোল সুইচ
Can be used, such as lights, etc automatically open at night, during the day automatically extinguished, and other equipment need to be automated.
Through the potentiometer to adjust the sensitivity, by adjusting the potentiometer, set the start relay threshold, when the light is hidden in this threshold, the module relay pull, light this threshold, the relay off;
Light threshold can be adjusted by potentiometer to set the relay start
Four M3 screw mounting holes,
Greatly facilitate the installation,
The board can be adjusted by potentiometer Sensitivity,
Built-in relay, do a variety of brightness detection control switch,
Input: DC 12V
Load capacity: 10A / AC 250V or DC up to 30V
RED LED ON: Indicate the Power ON
BLUE LED ON: Relay is working
Module output terminal has three ports
Normally open ( NO )
Common terminal ( COM )
Normally closed ( NC )
Size: 30MM*53MM
