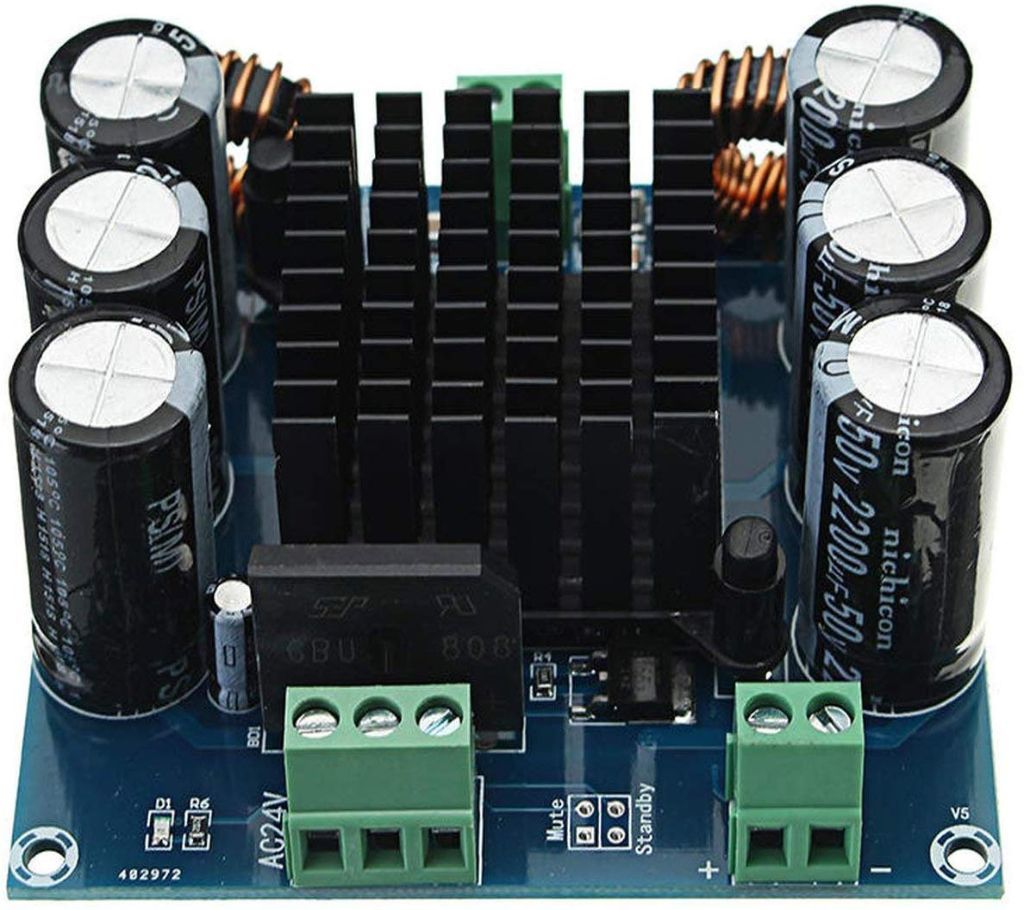

XH-M253 420W Mono Digital Amplifier Board TDA8954TH BTL Mode Module
XH-M253 420W Mono ডিজিটাল এমপ্লিফায়ার বোর্ড TDA8954TH BTL Mode Module
With the new original TDA8954TH core technology, the BTL bridge circuit is more efficient.Adopt original original rectifier bridge, original J13003 transistor.Adopt 2200uf array large capacity electrolytic capacitor.
Model: XH-M253
Core chip: TDA8954TH
Input voltage: recommended double 24V ring cattle (range of double 12-28V)
Output power: 420W
Number of channels: mono
Output impedance: 4Ω recommended (2-8Ω support)
Dimensions: 82 x 72 x 37mm
Net weight: 121g
