XH-M601 Battery Charging Control Board
XH-M601 ব্যাটারি চার্জিং কন্ট্রোল বোর্ড
XH-M601 Battery Charging Control Board
Power Supply: 13.8V-14.8V
Relay closing voltage: 12.4V
Relay off voltage: 14.8

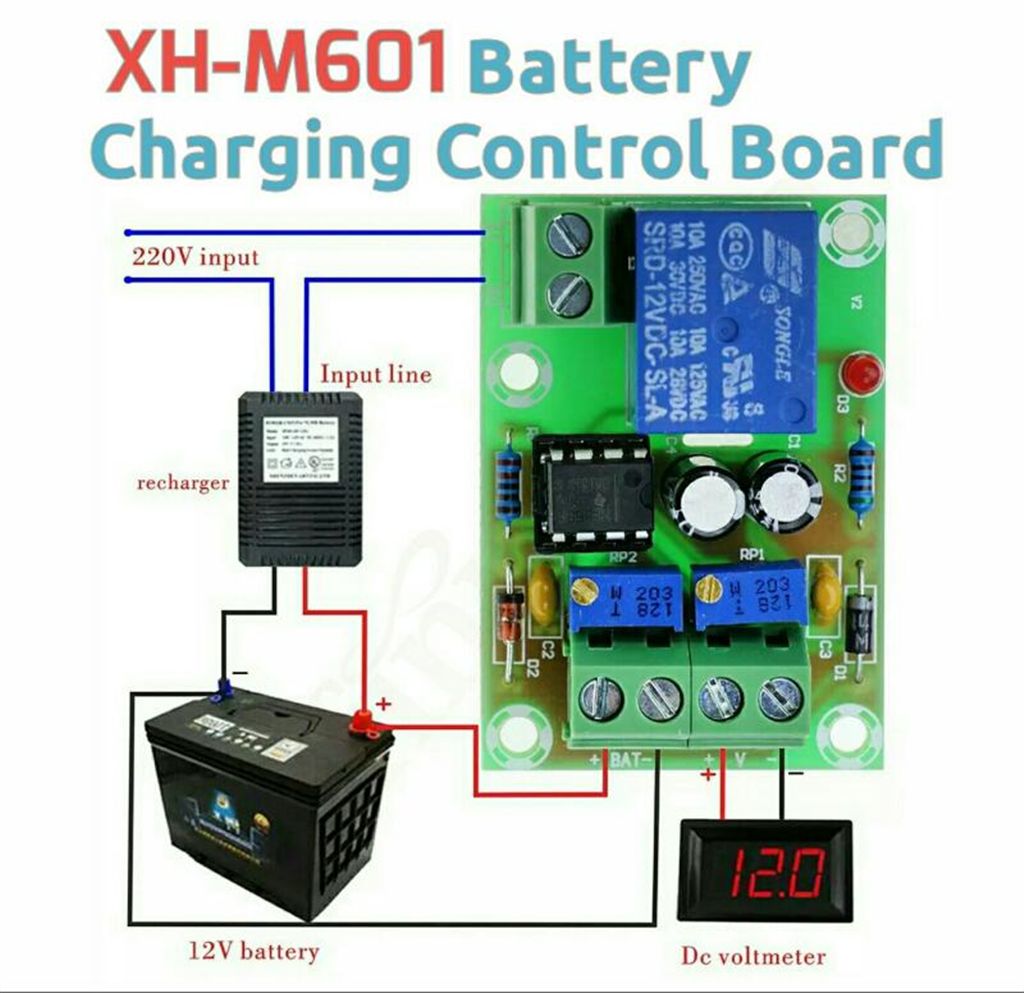

Voltage detection: DC voltmeter
Charging type: 12V battery
Potentiometer adjustment: RP1 RP2 (carefully adjusted)
PCB Board Size: 65mm x 52mm x 30mm
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 0.5-1cm measuring deviation due to manual measurement.
1 cm = 0.3937
RP1 regulates the battery start charging voltage (low voltage setting: clockwise high, counterclockwise low) factory setting is 12.4V
RP2 regulates battery disconnect charge voltage (low voltage setting: clockwise high, counterclockwise low) factory set to 14.8V
