Product Description

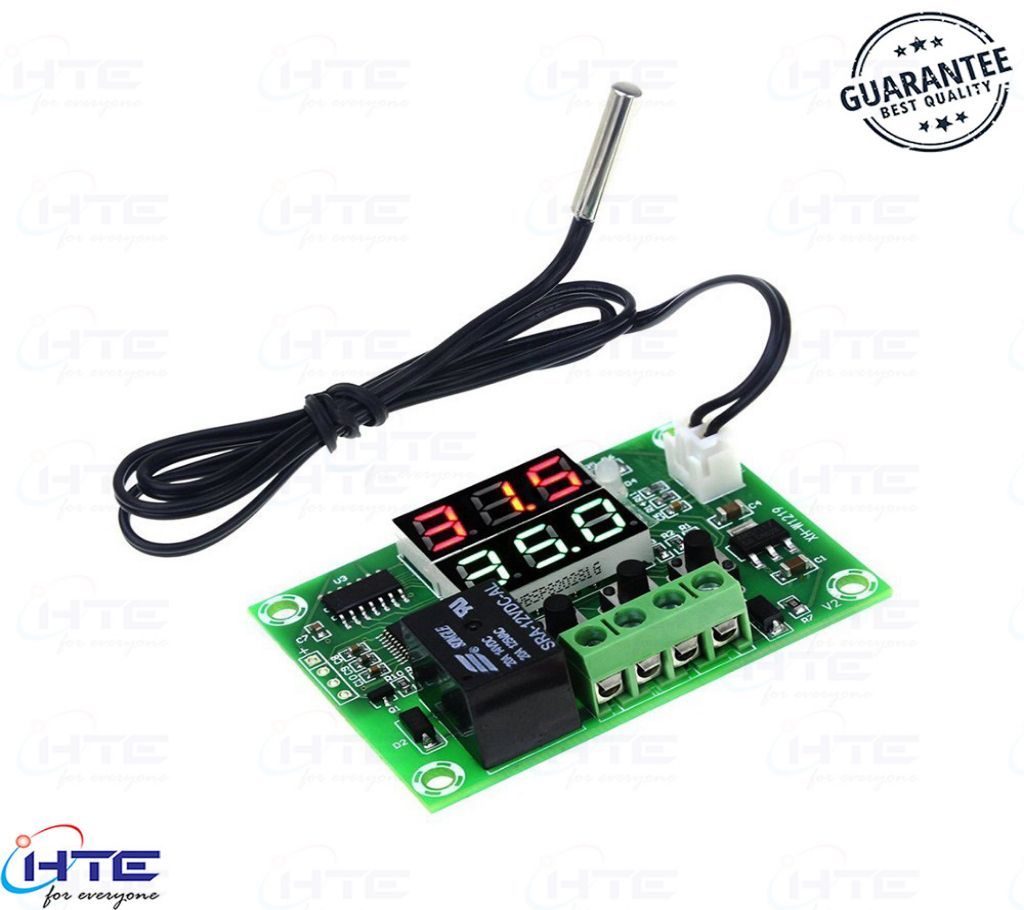

   1.Model:XH-W1219

   2.Control Range:-50~110 celsius

   3.Control Precision:0.1 celsius

   4.Measuring Input:NTC10K waterproof sensor L=0.5m

   5.High Temperature Alarm:-49~110 celsius

   6.Input Voltage:DC 12V

   7.Output Type:relay output 10A (max)

   8.Return Difference Setting:0.1~30 celsius

   9.Delay Starting:0-10min

   10.Temperature Calibration:-10~10 celsius

   11.Size:60*43*16mm

   P0.Temperature Control Mode:when first use this product;if it is used to heating,please set H,if used to cooling,please set C

   P1.Return Difference Setting:long press SET key entering into internal setting,choose P1 seting;then press SET key to achieve return difference value setting

   P2:Temperature Calibration:this function is for temperature calibration.If detection temperature and actual temperature is different,then usrs can apply this function to calibrate

   P3:Delay Start:this function is for compressor cooling

   P4:Set High Temperature Alarm Value:when actual temperature is higher than this value,screen will flash and sound an alarm
