Xiaomi Black Shark 10000mAh Power Bank: Appearance, specs and features
Xiaomi Black Shark 10000mAh Power Bank

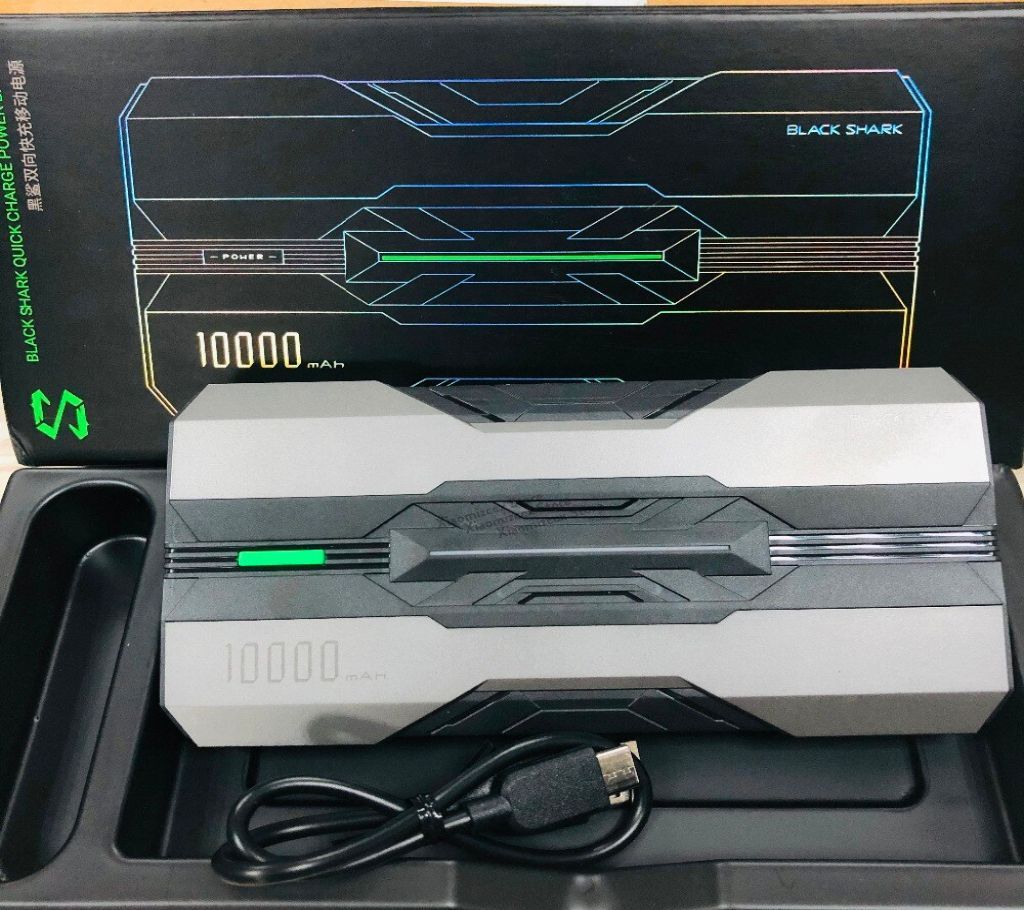

From the appearance, the black shark two-way fast charge mobile power supply and black shark 2 Pro put together very much. Black Shark Mobile Power inherits the cool X design of Black Shark, has a shell in armor and, like the Black Shark game phone 2 Pro, has a green breathing lamp, which is not a simple decoration, but a light.
However, it is wrong to think that it is just a cool look, and its own configuration is among the best. The black shark two-way fast charge mobile power supply has a capacity of 10000mAh, supports 18W fast charge, one port in and three ports out, and the Type-C interface supports both input (charging) and output.
Xiaomi Black Shark 10000mAh Power Bank: Teardown
First remove the Black Shark 10000mAh Power bank with 18W fast charge support plastic strips from the two shells.
Xiaomi Black Shark 10000mAh Power Bank
The shell is fixed by two screws, the screw is removed, the shell is removed, and the interior is connected by clasp.
Xiaomi Black Shark 10000mAh Power Bank、
The cell spray code is: CSD 3.7V/10000mAh/37Wh.
The PCB of the power bank is fixed with two screws.
Xiaomi Black Shark 10000mAh Power Bank
Between the bottom cell and the shell, there is also a layer of black sponge to buffer.
There is a thermistor on the side of the cell to detect the temperature rise of the cell.
Xiaomi Black Shark 10000mAh Power Bank
Remove the PCB and the cell and see that the back of the cell is fixed to the shell by a white double-sided adhesive, and a separate small lamp board is affixed to the back of the cell.
Six LED lights form the color light effect in the middle of the mobile power supply, and six LED lights are connected to the PCB through a separate arrangement.
USB-A interface, USB-C interface, USB-A interface close-up.
Xiaomi Black Shark 10000mAh Power Bank
PCB A side, this side is mainly mobile power control, s
