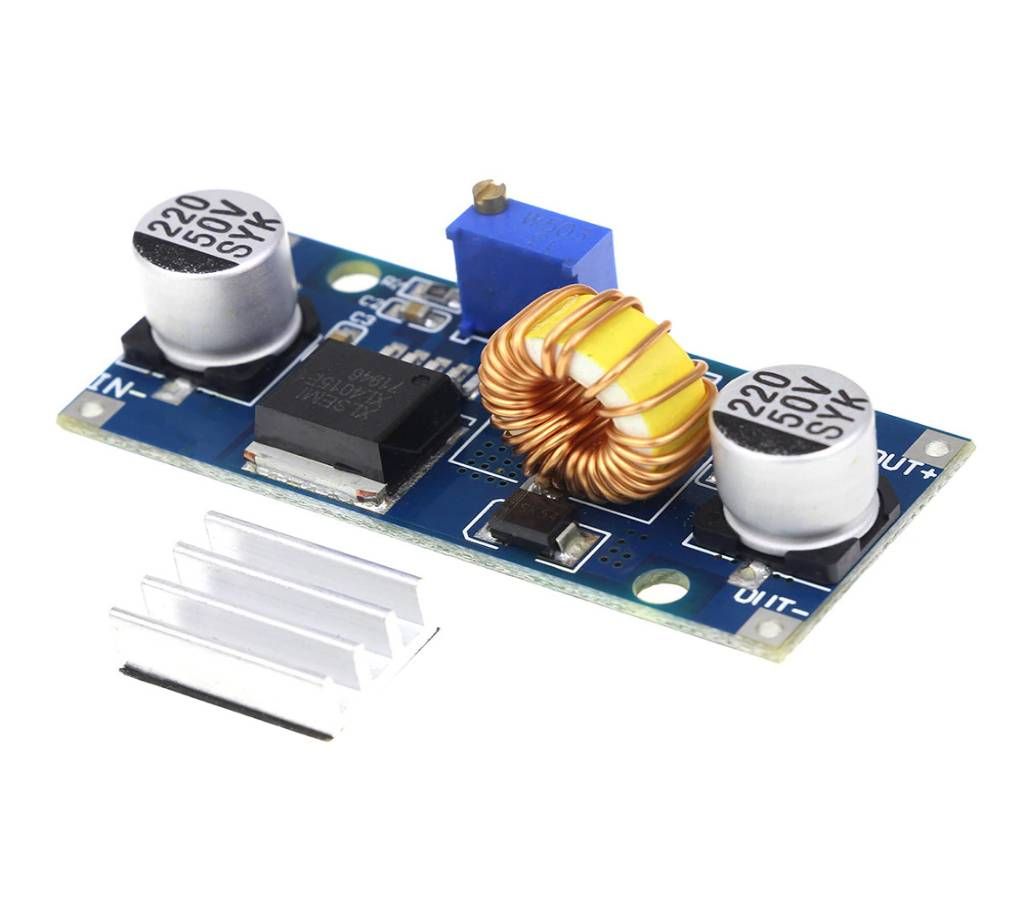

XL4015 5A DC-DC Adjustable Step-Down Power Module
XL4015 5A DC-DC Adjustable Step-Down পাওয়ার মডিউল
This is a DC to DC Adjustable step down Power Supply Module based on XL4015 with 5 Ampere current rating. This module works on 180 KHz frequency and is a PWM frequency Buck DC to DC Converter Module. XL4015 Power Supply Module is driving current of 5 Ampere with excellent line and load regulation, low ripple and high efficiency.
XL4015 is a DC to DC buck module i.e the output voltage is lower than the input voltage and has lots of applications from LCD tV & Monitors to Battery chargers and regulated power supply module for hobbyist.
Input voltage range 8-38 Volt DC(Note:input voltage not exceeding 38V)
Output voltage range:1.25-36 Volt DC adjustable
Output current: 0-5A
Output power: 75W
High efficiency up to 96%
Built in thermal shutdown function
Built in current limit function
Built in output short protection function
Input reverse polarity protection: None (if required,you can attach high current diode in series with the input).
L x W x H = 5.4*2.3*1.5 CM
