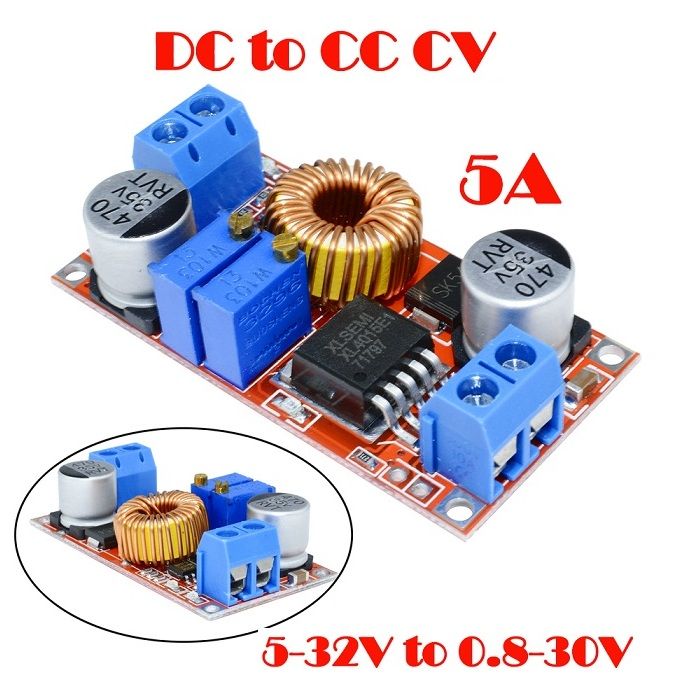

XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015E1 - Multi Plug
- Size: 5.2 x 2.65 x 1.4cm (L x W x H)
- Module Properties: non-isolated constant current and voltage module
- Rectification: non-synchronous rectification
- Input voltage: 5V-36V
- Output voltage: 1.25V-32V
- Output current: adjustable maximum 5A
- Conversion efficiency: 95% (the highest)
- Switching frequency: 180KHz
- Output ripple: 50mV (max) 20M bandwidth
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
- Operating Temperature: -40 °c to +85 °c
