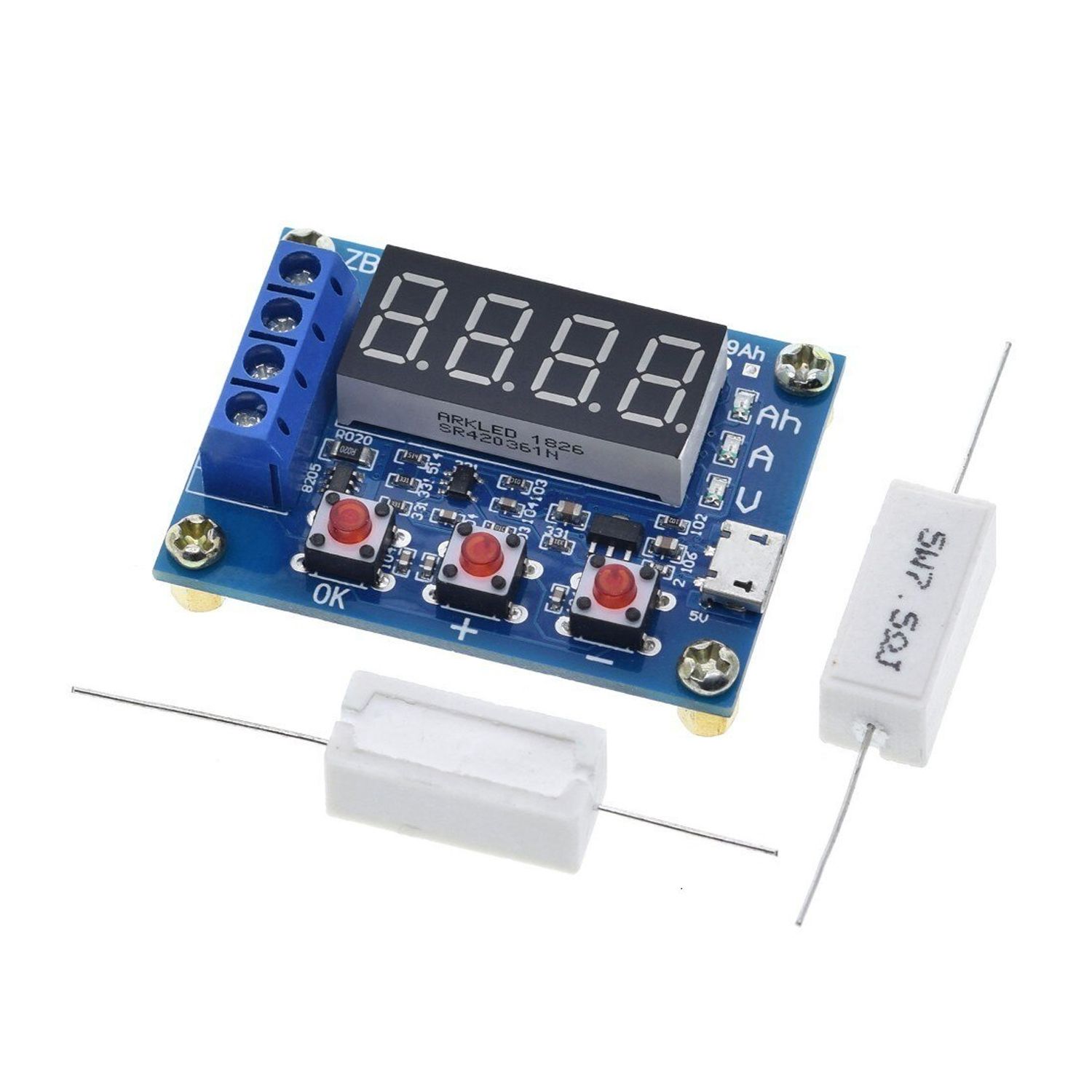

ZB2L3 Li-ion Lithium, Lead-acid 1.5V-12V Battery Capacity Meter & Discharge Tester for 18650 Li-ion Lithium Battery- HW-586
- Material: Electrical components
- ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650
- Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results
- Power supply voltage: DC4.5-6V (micro USB interface)
- Working current: <=70mA
- Discharge voltage: 1.00V-15.00V, resolution 0.01V
- Termination voltage range: 0.5-11.0V
- Support current through: maximum 3.000A, resolution 0.001A
- Maximum voltage measurement error: 1% + 0.02V
- Maximum current measurement error: 1.2%+-0.002A
- Maximum battery capacity range: 9999Ah (1Ah=1000mAh)
- Board size: 50mmX37mm
