In The Box

Sales Package: 1 x HDMI Matrix 4X2, 1 x Power adapter, 1 x Remote controller, 1 User manual

General

Brand: REC Trade

Type: 4x2 HDMI Matrix Switch

Ideal For: Projector, Gaming Console, Monitor, PC, Television

Number of Devices Supported: 6

Supports Gaming Consoles: Yes

Control Type: Manual

Color: Black

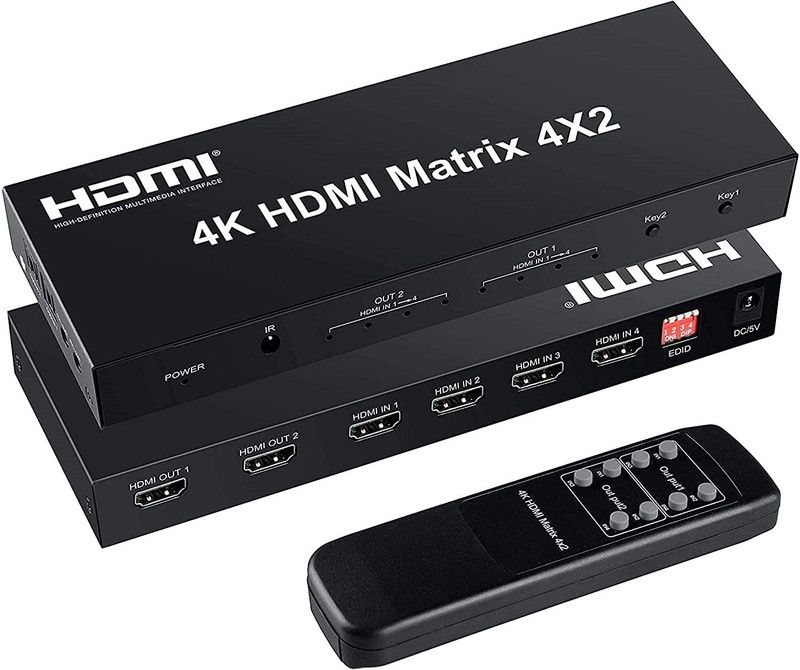

Model Name: 4x2 HDMI Matrix Switch with IR Remote Control, Support Ultra HD 4K,3D (SPT-0270)

Audio Video Features

Video Resolution: 4K

Data Transfer Rate: 6

Maximum Refresh Rate Supported: 60 Hz

HDCP Support: Yes

Other Audio Video Features: Audio Split & EDID :- Supports LPCM/ Dobly/ DTS 5.1 channel and smart EDID management. Any input HD source can do audio extract by the SPDIF or 3.5mm headphone audio output port separately or at the same time. Built-in IR sensor comes with a handy, intuitive remote control that makes switching inputs, it can do also switch by press button. (Note: AAA battery needed) and pls confirm your audio format is correct, High Resolution :- Supports a multitude of video resolutions, including 4K x 2K, 1080P, Ultra HD, 3D, HD audio and etc. Supports 8/10/12 bit deep color. Support HDMI 1.4b and HDCP1.4,Support 3.4Gbps x3 data rate and TMDS clock up to 340Mhz

Hdmi Connectors

HDMI: Yes, 1.4

HDMI Ports: 4 (Input), 2 (Output)

Power

DC In: Yes

Power Requirement: DC5V

Power Adapter: AC (50HZ, 60HZ) 100V-240V (Input), DC5V/1A (Output)

Other Power Features: Plug and play :- The matrix is plug and play equipment. There is no extra set up in your TV or input devices. Simply plug in your devices and your ready.

Additional Features

Other Features: Premium Quality :- This 4x2 HDMI Matrix contains in-built automatic equalization and amplification to ensure optimum transmission without loss in video/audio quality. It is embedded with ESD protection, and has been passed thousands of hours of tests under different and sophisticated applications which include security systems, outdoor advertising screens, broadcasting stations, and public theaters etc..

Dimensions

Width x Height x Depth: 200 x 70 x 25 mm

Weight: 200 g

Warranty

Warranty Summary: Manufacture warranty

Covered in Warranty: Manufacture Defect

Not Covered in Warranty: Physical Damage or Burned

Warranty Service Type: Replacement warranty
